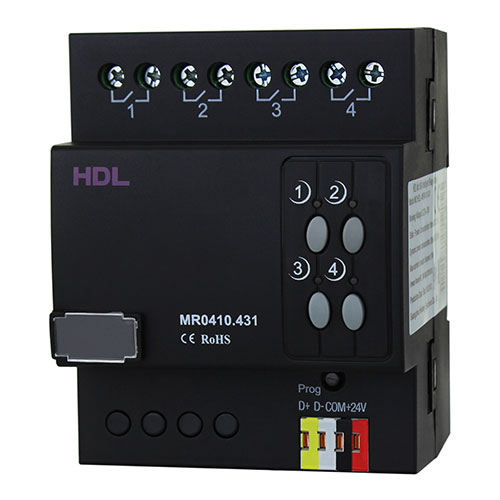

4CH 10A High Power Switch Actuator


							Model: HDL-MR0410.431



							$ 533.002 NZD


$ 460 NZD
Quantity:
Out of Stock
Share With friends



Product Description The HDL-MR0410.431 relay module can supply 4 channels with a current of 10A. The module is able to support diversified devices, and can be applied in to any solution which requires switching control. Zero power consumption Using a high performance magnetic launching relay the MR0410.431 does not consume any power in standby mode, and when the module is triggered it only uses a momentary DC Pulse. Reliable Each of the four channels that the module outputs to support 10A. Due to the inclusion of a 16A magnetic relay, the module has a guaranteed stable performance, and lower maintenance requirements. This built in redundancy ensures the module has a long and efficient service life. Multiple loads Thanks to the built in 16A magnetic relay, the module can handle a 500A current surge. This enables the module to switch multiple loads from a wide range of sources. From lighting, heating, motors, transformers, valves and power sockets, this module unifies and streamlines control into one simple to install and operate package. Power on protection All of the modules 4 channels feature a power on protection delay time; this delay time is adjustable from 0-60 minutes. This delay protection safeguards lights that are connected to the module providing a hassle free service and a maximized life expectancy Network protection In order to protect the power network the MR0410.431, has a delay time from 0-25 seconds. This ensures that the danger posed to the power network by current surges when multiple devices are turned on is negated. ? 4-channel relay output unit. ? Scene controller function available. ? Up to 4 separate areas. ? Each area has 8 scenes, maximum running time for scene is 60 minutes. ? Each channel has light protection delay (0-60 minutes). ? Each channel has batch turn-on delay(0-25 seconds). ? Each channel has manual control for relay unit. ? You can select specified scene or scene before power off when the device restarts. ? Supports easy programming and HDL Buspro online upgrading. ? Communication: HDL Buspro.



features â?  4-channel relay output unit. â?  Scene controller function available. â?  Up to 4 separate areas. â?  Each area has 8 scenes, maximum running time for scene is 60 minutes. â?  Each channel has light protection delay (0-60 minutes). â?  Each channel has batch turn-on delay(0-25 seconds). â?  Each channel has manual control for relay unit. â?  You can select specified scene or scene before power off when the device restarts. â?  Supports easy programming and HDL Buspro online upgrading. â?  Communication: HDL Buspro.



Specifications
  • Bus Current Draw : 35
  • Amps per Channel : 10
  • Channels : 4
