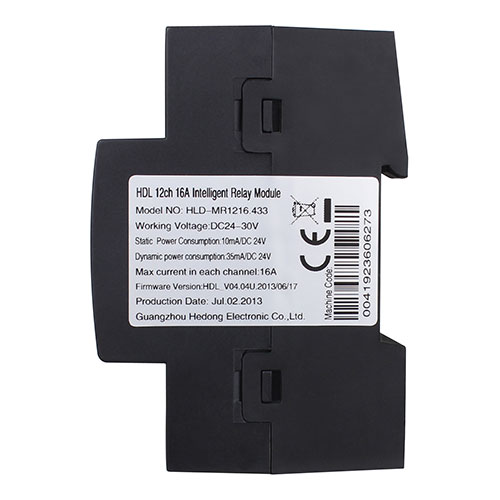

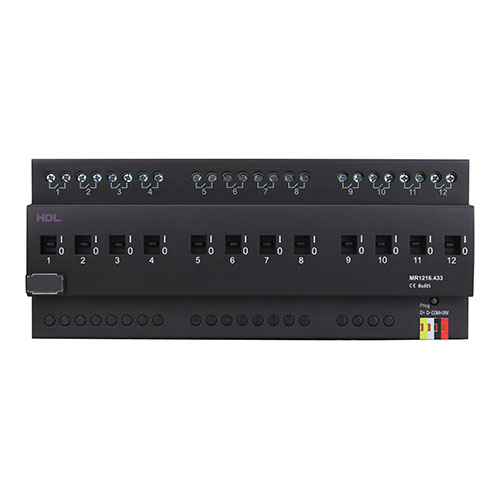

12CH 16A High Power Switch Actuator


							Model: HDL-MR1216.433



							$ 533.002 NZD


$ 460 NZD
Quantity:
Out of Stock
Share With friends



Product Description The HDL-MR1216.433 relay module can supply 12 channels with a current of 16A. Manual channel control is enabled via the modules on-board buttons. This module is able to support diversified devices, and can be applied to any solution which requires switching control. Zero power consumption Using a high performance magnetic launching relay the HDL-MR1216.433 does not consume any power in standby mode, and when the module is triggered it only uses a momentary DC Pulse. Reliable Each of the 12 channels that the module outputs to support 16A. Due to the inclusion of a 50A magnetic relay, the module has a guaranteed stable performance, and lower maintenance requirements. This built in redundancy ensures the module has a long and efficient service life. Multiple loads Thanks to the built in 50A magnetic relay, the module can handle a 500A current surge. This enables the module to switch multiple loads from a wide range of sources. From lighting, heating, motors, transformers, valves and power sockets, this module unifies and streamlines control into one simple to install and operate package. Manual control Each channel has full manual control, and independent channel testing. This enables onsite switching of lights and dimming control even if the module is powered off. Power on protection All of the modules 12 channels feature a power on protection delay time; this delay time is adjustable from 0-60 minutes. This delay protection safeguards lights that are connected to the module providing a hassle free service and a maximized life expectancy. ? 12-channel relay output unit. ? Scene controller function available. ? Up to 12 separate areas. Each area has 24 scenes with maximum running time of 60 minutes. ? Each area has 2 sequences, each sequence has 12 steps. ? Each channel has light protection delay (0-60 minutes). ? Each channel has batch turn-on delay(0-25 seconds). ? Each channel has manual control for relay unit. ? You can select specified scene or scene before power off when the device restarts. ? Supports easy programming and HDL Buspro online upgrading. ? Communication: HDL Buspro.



features ? 12-channel relay output unit. ? Scene controller function available. ? Up to 12 separate areas. Each area has 24 scenes with maximum running time of 60 minutes. ? Each area has 2 sequences, each sequence has 12 steps. ? Each channel has light protection delay (0-60 minutes). ? Each channel has batch turn-on delay(0-25 seconds). ? Each channel has manual control for relay unit. ? You can select specified scene or scene before power off when the device restarts. ? Supports easy programming and HDL Buspro online upgrading. ? Communication: HDL Buspro.



Specifications
  • Bus Current Draw : 35
  • Amps per Channel : 16
  • Channels : 12
